Product Summary

The ADXL327BCPZ is a small, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±2 g. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration, resulting from motion, shock, or vibration.

Parametrics

Absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered): 10,000 g; (2)Acceleration (Any Axis, Powered): 10,000 g; (3)VS: -0.3 V to +3.6 V; (4)All Other Pins: (COM - 0.3 V) to (VS + 0.3 V); (5)Output Short-Circuit Duration (Any Pin to Common): Indefinite; (6)Temperature Range (Powered): -55℃ to +125℃; (7)Temperature Range (Storage): -65℃ to +150℃.

Features

Features: (1)3-axis sensing; (2)Small, low profile package: 4 mm × 4 mm × 1.45 mm LFCSP; (3)Low power: 350 μA typical; (4)Single-supply operation: 1.8 V to 3.6 V; (5)10,000 g shock survival; (6)Excellent temperature stability; (7)Bandwidth adjustment with a single capacitor per axis; (8)RoHS/WEEE lead-free compliant.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

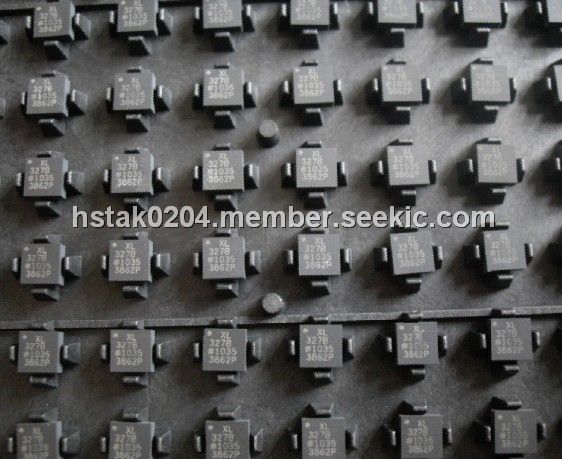

ADXL327BCPZ
ADXL327BCPZ


IC ACCELEROMETER 3AX 2G 16LFCSP

Data Sheet

0-1: $3.64
1-10: $3.25
10-100: $2.67
100-250: $2.41
250-500: $2.16
500-1000: $1.82
1000-2500: $1.74
ADXL327BCPZ-RL
ADXL327BCPZ-RL


IC ACCELEROMETER 3AX 2G 16LFCSP

Data Sheet

0-4000: $1.74
ADXL327BCPZ-RL7
ADXL327BCPZ-RL7


IC ACCELEROMETER 3AX 2G 16-LFCSP

Data Sheet

0-1000: $1.82
