Product Summary

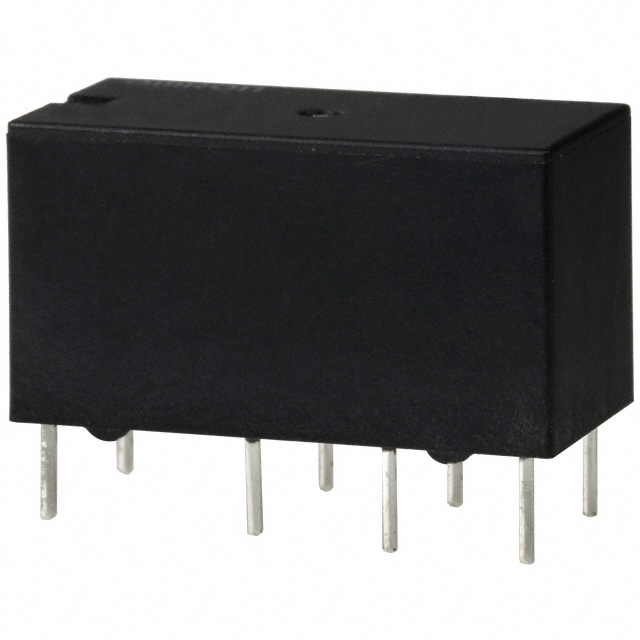

The G5V-2 is a miniature relay for signal circuits.

Parametrics

G5V-2 contact ratings: (1)Load Resistive: load (cosf = 1); (2)Rated load: 0.5 A at 125 VAC; 2 A at 30 VDC for Standard models; 0.5 A at 125 VAC; 1 A at 24 VDC for High sensitivity models; (3)Contact material: Ag + Au-clad; (4)Rated carry current: 2 A; (5)Max. switching voltage: 125 VAC, 125 VDC; (6)Max. switching current: 2 A for Standard models; 1 A for High sensitivity models; (7)Max. switching power 62.5 VA, 60 W for Standard models; 62.5 VA, 24 W for High sensitivity models; (8)Failure rate (reference value): 0.01 mA at 10 mVDC.

Features

G5V-2 features: (1)Wide switching power of 10 μA to 2 A; (2)High dielectric strength coil-contacts:1,000 VAC; opecontacts: 750 VAC; (3)Conforms to FCC Part 68 requirements; (4)Ag + Au clad bifurcated crossbar contacts and fully sealed for high contact reliability; (5)New 150-mW relays with high-sensitivity.

Diagrams

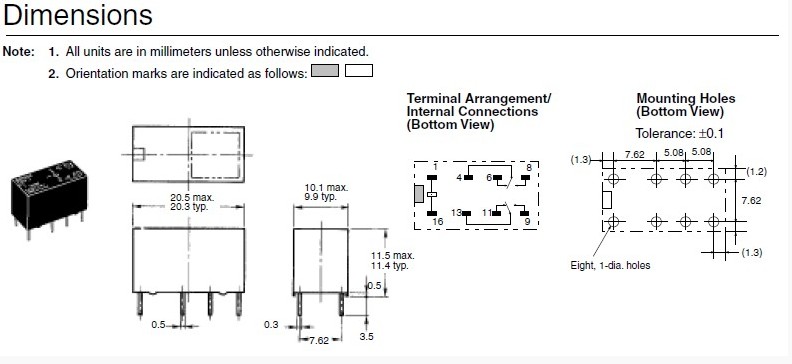

G5V-2 dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
G5V-2 DC4.5
G5V-2 DC4.5
Omron Electronics
High Frequency / RF Relays ThruHole Sealed DPDT 4.5DC 500mW
Data Sheet
0-1: $1.37
1-25: $1.25
25-50: $1.16
50-100: $1.07
G5V-2-DC12
G5V-2-DC12
Omron Electronics
Low Signal Relays - PCB ThruHole Sealed DPDT 12VDC 500mW
Data Sheet
0-1: $1.21
1-25: $1.14
25-50: $1.08
50-100: $1.03
G5V-2-DC5
G5V-2-DC5
Omron Electronics
Low Signal Relays - PCB ThruHole Sealed DPDT 5VDC 500mW
Data Sheet
0-1: $1.28
1-25: $1.20
25-50: $1.13
50-100: $1.07
G5V-2-DC6
G5V-2-DC6
Omron Electronics
High Frequency / RF Relays ThruHole Sealed DPDT 6VDC 500mW
Data Sheet
0-1: $1.80
1-25: $1.62
25-50: $1.44
50-100: $1.30
G5V-2-DC9
G5V-2-DC9
Omron Electronics
Low Signal Relays - PCB ThruHole Sealed DPDT 9VDC 500mW
Data Sheet
0-1: $1.09
1-25: $1.00
25-50: $0.93
50-100: $0.90
G5V-2-H DC48
G5V-2-H DC48
Omron Electronics
High Frequency / RF Relays ThruHole Sealed 2A DPDT 48VDC 360mW
Data Sheet
0-1: $2.42
1-25: $2.18
25-50: $2.07
50-100: $1.90
G5V-2-H1-DC24
G5V-2-H1-DC24
Omron Electronics
Low Signal Relays - PCB ThruHole Hi-Sens DPDT 24DC 200mW Seal
Data Sheet
0-1: $1.66
1-25: $1.47
25-50: $1.40
50-100: $1.25
G5V-2-H1-DC12
G5V-2-H1-DC12
Omron Electronics
Low Signal Relays - PCB ThruHole Hi-Sens DPDT 12DC 150mW Seal
Data Sheet
0-1: $1.83
1-25: $1.76
25-50: $1.53
50-100: $1.38
