Product Summary

The CY8C29666-24PVXI consists of many Mixed Signal Array with On-Chip Controller devices. It is designed to replace multiple traditional MCU-based system components with one, low cost single-chip programmable device.

Parametrics

Absolute maximum ratings: (1)Storage Temperature: -55 to +100 ℃; (2)Ambient Temperature with Power Applied: -40 to +85 ℃; (3)Vdd Supply Voltage on Vdd Relative to Vss: -0.5 to +6.0 V; (4)DC Input Voltage: Vss - 0.5 to Vdd + 0.5 V; (5)DC Voltage Applied to Tri-state: Vss - 0.5 to Vdd + 0.5 V; (6)Maximum Current into any Port Pin: -25 to +50 mA; (7)Maximum Current into any Port Pin Configured as Analog; (8)Driver: -50 to +50 mA; (9)Electro Static Discharge Voltage: 2000 V min; (10)Latch-up Current: 200 mA max.

Features

Features: (1)Powerful Harvard Architecture Processor; (2)Advanced Peripherals (PSoC Blocks); (3)Precision, Programmable Clocking; (4)Flexible On-Chip Memory; (5)Programmable Pin Configurations; (6)Additional System Resources; (7)Complete Development Tools.

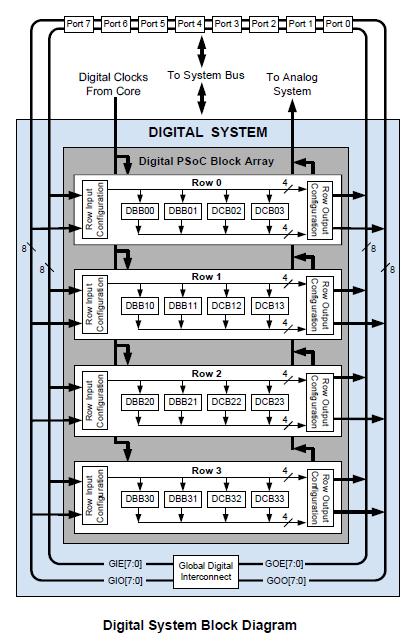

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CY8C29666-24PVXI
CY8C29666-24PVXI

Cypress Semiconductor

Programmable Systems-on-a-Chip (PSoC) IC MCU 32K FLASH 2K SRAM

Data Sheet

0-1: $6.15
1-25: $3.67
25-50: $3.47
50-100: $3.05
CY8C29666-24PVXIT
CY8C29666-24PVXIT

Cypress Semiconductor

Programmable Systems-on-a-Chip (PSoC) 32K Flsh 2KB RAM IND

Data Sheet

0-691: $3.61
691-1000: $3.36
1000-2000: $3.23
