Product Summary

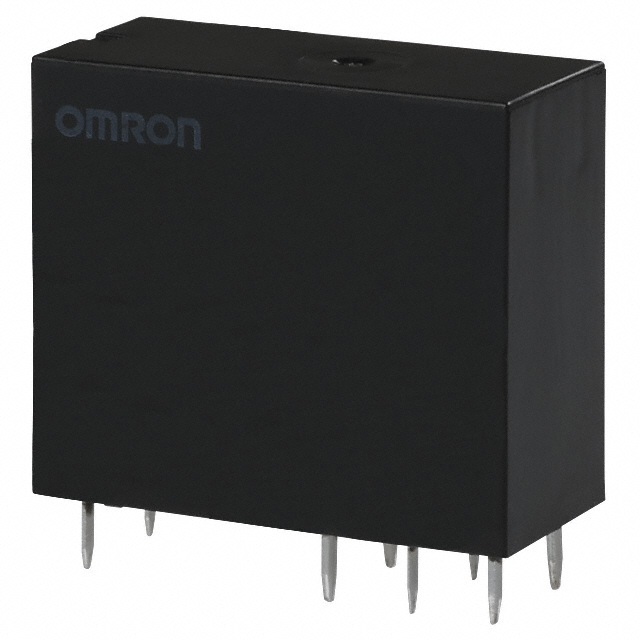

The G2R-2 is a power relay.

Parametrics

G2R-2 absolute maximum ratings: (1)Set coil, Rated current:70.6 mA; Coil resistance: 170 W; Coil inductance (H) (ref. value), Armature OFF: 0.42; Armature ON: 0.83; (2)Reset coil, Rated current: 50 mA; Coil resistance: 240Ω; Coil inductance (H) (ref. value), Armature OFF: 0.018; Armature ON: 0.036; (3)Must set voltage: 70% max. of rated voltage; (4)Must reset voltage: 70% max. of rated voltage; (5)Max. voltage: 140% of rated voltage (at 23.C); (6)Power consumption: Set coil: Approx. 850 mW; Reset coil: Approx. 600 mW.

Features

G2R-2 features: (1)Conforms to VDE0435 (VDE approval: C250 insulation grade), UL508, CSA22.2, SEV, SEMKO; (2)Meets VDE0700 requirements for household products according to VDE0110; (3)Clearance and creepage distance: 8 mm/8 m; (4)Models with CTI250 material available; (5)High-sensitivity (360 mW) and high-capacity (16 A) types available; (6)Double-winding latching type available; (7)Plug-in with test button and quick-connectterminals available; (8)Highly functional socket available.

Diagrams

G2R-2 circuit diagram
