Product Summary

The G2R-2-12V/24V is a type of power PCB relay which has many unique features.

Parametrics

Characteristics: (1)operating frequency is 18,000 operations/hour(mechanical) or is 1,800 operations/hour(under rated load) (electrical); (2)insulation resistance is 1,000 M ohms min.(at 500 VDC); (3) dielectric strength is 5,000 VAC, 50/60 Hz for 1 minute between coil and contacts or is 1,000 VAC, 50/60 Hz for 1 minute across contacs of same pole; (4)vibration is 10 Hz to 55 Hz(1.50 mm (0.60 in) double amplitude; (5)ambient temperature is -40℃ to 70℃; (6)humidity is 35% to 85% RH; (7)weigth is approx.17 g(0.60 oz).

Features

Features: (1) creepage distance of 8.0 mm (0.31 in) min between coil and contact; (2) dual-winding latching type available; (3) plug-in and quick-connect terminals available; (4) high sensitivity(360 mW) and high capacity (16 A) types available; (5) highly stable magnetic circuit for latching endurance and excellent resistance to vibration and shock; (6) continuous coil rating; (7) safety-oriented design assuring high surge resistance is 10,000 V min. between coil and contacts.

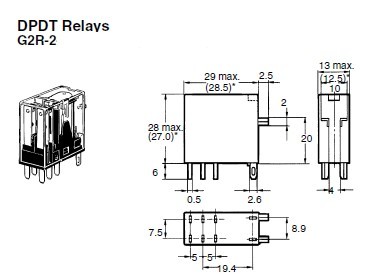

Diagrams

G2R-1 12/24VDC
G2R-1 12/24VDC

Other


Data Sheet

Negotiable
G2R-1 AC200/(220)
G2R-1 AC200/(220)

Omron Electronics

General Purpose / Industrial Relays SPDT 10A Thru-Hole 200/220VAC

Data Sheet

0-60: $7.07
60-100: $6.52
100-200: $6.05
200-500: $5.65
G2R-1 DC12
G2R-1 DC12

Other


Data Sheet

Negotiable
G2R-1 DC20
G2R-1 DC20

Omron Electronics

General Purpose / Industrial Relays SPDT 10A Thru-Hole 20VDC

Data Sheet

0-1: $2.82
1-25: $2.56
25-50: $2.35
50-100: $2.17
G2R-1 DC3
G2R-1 DC3

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $2.48
1-25: $2.35
25-50: $2.16
50-100: $1.97
G2R-1 DC5
G2R-1 DC5

Other


Data Sheet

Negotiable
