The G6B-2114P-US is a sub-miniature relay that switches up to 5 A.

Parametrics

G6B-2114P-US absolute maximum ratings: (1)Must operate voltage: 80% max. of rated voltage; (2)Must release voltage 10% min. of rated voltage; (3)Max. voltage: 140% of rated voltage (at 23℃); (4)Power consumption: Approx. 300 mW; (5)Rated voltage: 5 VDC; (6)Rated current: 60 mA; (7)Coil resistance: 83.3 Ω.

Features

G6B-2114P-US features: (1)Sub-miniature: 20 x 10 x 10 mm (L x W x H); (2)Low power consumption: 200 mW; (3)Unique moving loop armature reduces relay size, magnetic interference, and contact bounce time; (4)Single- and double-winding latching types also available.

Diagrams

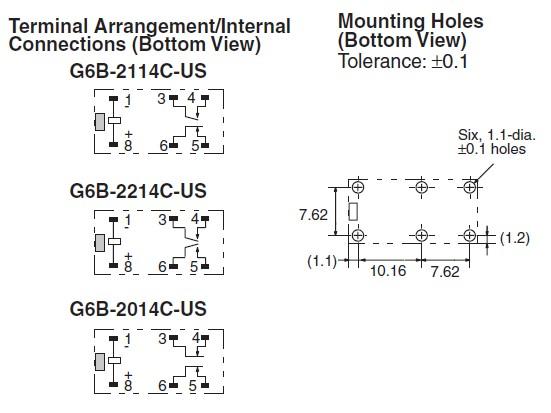

G6B-2114P-US package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
G6B-2114P-US DC12
G6B-2114P-US DC12


RELAY GEN PURPOSE DPST 5A 12V

Data Sheet

0-1: $4.41
1-25: $3.97
25-50: $3.53
50-100: $3.18
100-250: $3.00
250-500: $2.65
500-1000: $2.38
G6B-2114P-US DC24
G6B-2114P-US DC24


RELAY GEN PURPOSE DPST 5A 24V

Data Sheet

0-1: $4.61
1-25: $4.15
25-50: $3.69
50-100: $3.32
100-250: $3.14
250-500: $2.77
500-1000: $2.49
G6B-2114P-US-DC12
G6B-2114P-US-DC12

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay SPST-NO + -NC 12VDC

Data Sheet

0-1: $2.99
1-25: $2.86
25-50: $2.73
50-100: $2.62
G6B-2114P-US-AP DC12
G6B-2114P-US-AP DC12

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $4.99
1-25: $4.52
25-50: $4.15
50-100: $3.83
G6B-2114P-US DC48
G6B-2114P-US DC48

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay

Data Sheet

0-1: $5.95
1-25: $5.41
25-50: $4.96
50-100: $4.57
G6B-2114P-US DC6
G6B-2114P-US DC6


RELAY GENERAL PURPOSE DPST 5A 6V

Data Sheet

0-1: $4.41
1-25: $3.97
25-50: $3.53
50-100: $3.18
100-250: $3.00
250-500: $2.65
500-1000: $2.38
G6B-2114P-US-DC5
G6B-2114P-US-DC5

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay SPST-NO + -NC 5VDC

Data Sheet

0-1: $3.45
1-25: $3.33
25-50: $3.17
50-100: $3.00
G6B-2114P-US-DC24
G6B-2114P-US-DC24

Omron Electronics

General Purpose / Industrial Relays Power PCB Relay SPST-NO + -NC 24VDC

Data Sheet

0-1: $3.70
1-25: $3.49
25-50: $3.34
50-100: $3.14
