Product Summary

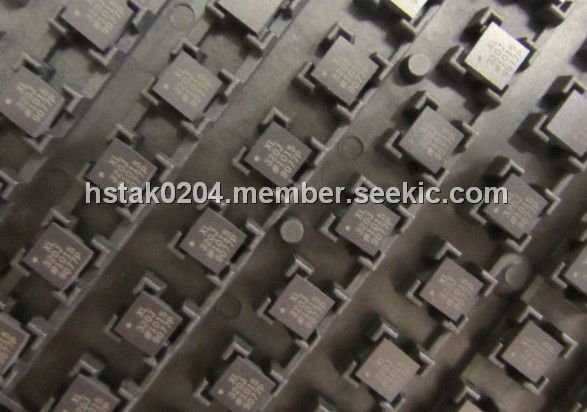

The ADXL320JCP is a low cost, low power, complete dual-axis accelerometer with signal conditioned voltage outputs, which is all on a single monolithic IC. The product measures acceleration with a full-scale range of ±5 g (typical). It can also measure both dynamic acceleration (vibration) and static acceleration (gravity). The ADXL320JCP typical noise floor is 250 μg/√Hz, allowing signals below 2 mg to be resolved in tilt-sensing applications using narrow bandwidths (<60 Hz). The user selects the bandwidth of the accelerometer using capacitors CX and CY at the XOUT and YOUT pins. Bandwidths of 0.5 Hz to 2.5 kHz may be selected to suit the application. The ADXL320JCP is available in a very thin 4 mm × 4 mm × 1.45 mm, 16-lead, plastic LFCSP.
Parametrics
Absolute maximum ratings: (1)Acceleration (Any Axis, Unpowered): 10,000 g;(2)Acceleration (Any Axis, Powered): 10,000 g;(3)VS: -0.3 V to +7.0 V;(4)All Other Pins: (COM - 0.3 V) to (VS + 0.3 V);(5)Output Short-Circuit Duration: Indefinite;(6)Temperature Range (Powered): -55℃ to +125℃;(7)Temperature Range (Storage): -65℃ to +150℃.
Features
Features: (1)3-axis sensing; (2)Small, low profile package: 4 mm × 4 mm × 1.45 mm LFCSP; (3)Low power: 350 μA typical; (4)Single-supply operation: 1.8 V to 3.6 V; (5)10,000 g shock survival; (6)Excellent temperature stability; (7)Bandwidth adjustment with a single capacitor per axis; (8)RoHS/WEEE lead-free compliant.

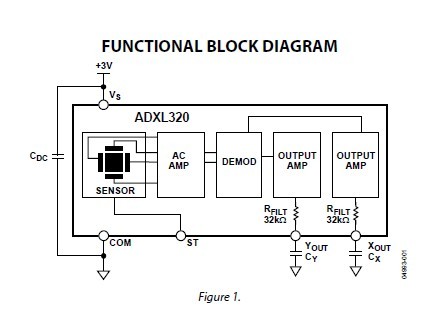

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ADXL320JCP |
Analog Devices Inc |
IC ACCELEROMETER DUAL-AX 16LFCSP |
Data Sheet |
|
|
||||||||||||
|
ADXL320JCP-REEL |
Analog Devices Inc |
IC ACCELEROMETER DUAL 16LFCSP |
Data Sheet |
|
|
||||||||||||
