Product Summary

The PIC16F916T-I/SS is a 28/40/44-Pin flash-based, 8-bit CMOS microcontroller with LCD driver and nanoWatt technology. It is available in 28/40/44-pin packages.

Parametrics

PIC16F916T-I/SS absolute maximum ratings: (1)Ambient temperature under bias: -40℃ to +125℃; (2)Storage temperature: -65℃ to +150℃; (3)Voltage on VDD with respect to VSS: -0.3V to +6.5V; (4)Voltage on MCLR with respect to Vss: -0.3V to +13.5V; (5)Voltage on all other pins with respect to VSS: -0.3V to (VDD + 0.3V); (6)Total power dissipation: 800mW; (7)Maximum current out of VSS pin: 300mA; (8)Maximum current into VDD pin: 250mA; (9)Input clamp current, IIK (VI < 0 or VI > VDD): ±20mA; (10)Output clamp current, IOK (Vo < 0 or Vo >VDD): ±20mA.

Features

PIC16F916T-I/SS features: (1)Power-saving Sleep mode; (2)Wide operating voltage range (2.0V-5.5V); (3)Industrial and Extended temperature range; (4)Power-on Reset (POR); (5)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (6)Brown-out Reset (BOR) with software control option; (7)Enhanced Low-Current Watchdog Timer (WDT) with on-chip oscillator (software selectable nominal 268 seconds with full prescaler) with software enable; (8)Multiplexed Master Clear with pull-up/input pin; (9)Programmable code protection.

Diagrams

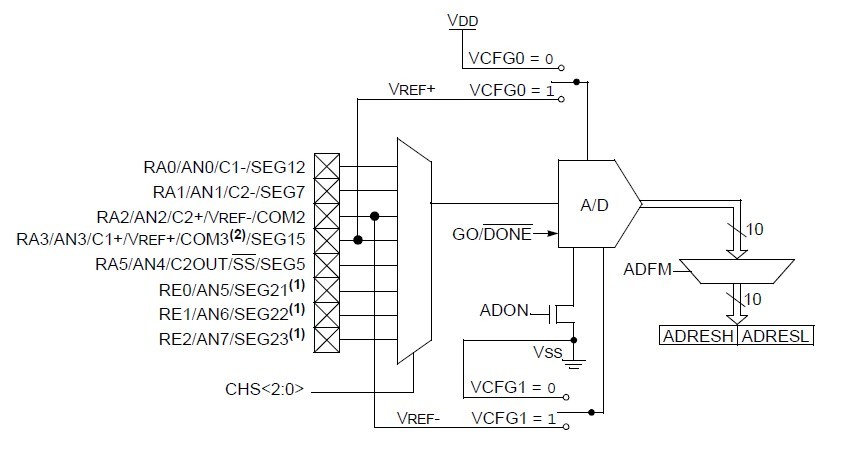

PIC16F916T-I/SS block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
PIC16F916T-I/SS
PIC16F916T-I/SS

Microchip Technology

8-bit Microcontrollers (MCU) 14KB FL 352R 25 I/O

Data Sheet

0-1680: $1.35
1680-2100: $1.35
