Product Summary

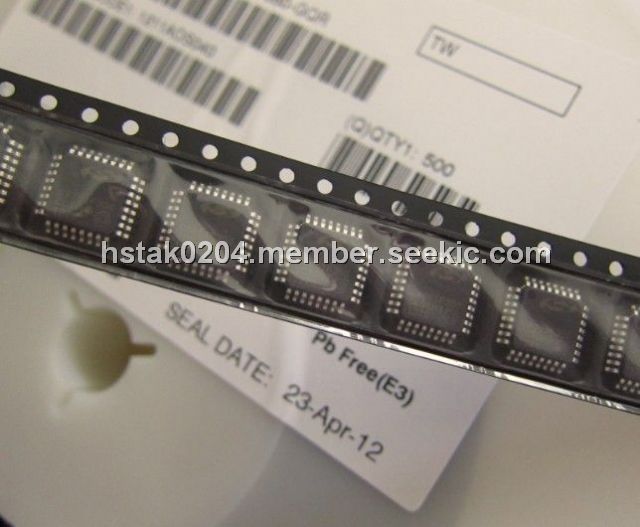

The C8051F023-GQR is a mixed-Signal 8KB ISP flash MCU.
Parametrics
C8051F023-GQR absolute maximum ratings: (1)Typical Operating Current: 10mA @ 25MHz; (2)Temperature Range: –40°C to +85°C; (3)SUPPLY VOLTAGE: 2.7V to 3.6V.
Features
C8051F023-GQR features: (1)On-Chip Debug Circuitry Facilitates Full Speed, Non-Intrusive In-; (2)System Debug (No Emulator Required!); (3)Provides Breakpoints, Single Stepping, Watchpoints, Stack Monitor; (4)Inspect/Modify Memory and Registers; (5)Superior Performance to Emulation Systems Using ICE-Chips, Target Pods, and Sockets; (6)IEEE1149.1 Compliant Boundary Scan.

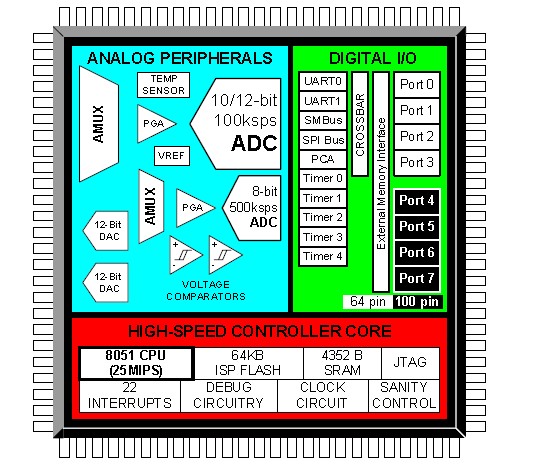

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
C8051F023-GQR |
Silicon Labs |
8-bit Microcontrollers (MCU) 64KB 10ADC 64Pin MCU Tape and Reel |
Data Sheet |
|
|
|||||||||||||
