Product Summary
The C8051F040-GQR is a Mixed Signal ISP Flash MCU.
Parametrics
C8051F040-GQR absolute maximum ratings: (1)Supply Voltage: 2.7 to 3.6 V; (2)Supply Current (shutdown) Oscillator not running; VDD Monitor; (3)Disabled: 0.1 μA; (4)Clock Frequency Range DC: 25 MHz; (5)Supply Current (each Comparator) : 1.5 μA; (6)Response Time | CP+ – CP- | = 100mV: 4 μs.
Features
C8051F040-GQR features: (1)High-Speed pipelined 8051-compatible CIP-51 microcontroller core (100 MIPS or 50 MIPS); (2)In-system, full-speed, non-intrusive debug interface (on-chip); (3)True 12 or 10-bit 100 ksps ADC with PGA and 8-channel analog multiplexer; (4)True 8-bit 500 ksps ADC with PGA and 8-channel analog multiplexer ; (5)Two 12-bit DACs with programmable update scheduling; (6)2-cycle 16 by 16 Multiply and Accumulate Engine ; (7)128k bytes or 64k bytes of in-system programmable FLASH memory; (8)8448 (8k + 256) bytes of on-chip RAM; (9)External Data Memory Interface with 64k byte address space; (10)SPI, SMBus/I2C, and (2) UART serial interfaces implemented in hardware; (11)Five general purpose 16-bit Timers; (12)Programmable Counter/Timer Array with 6 capture/compare modules; (13)On-chip Watchdog Timer, VDD Monitor, and Temperature Sensor.

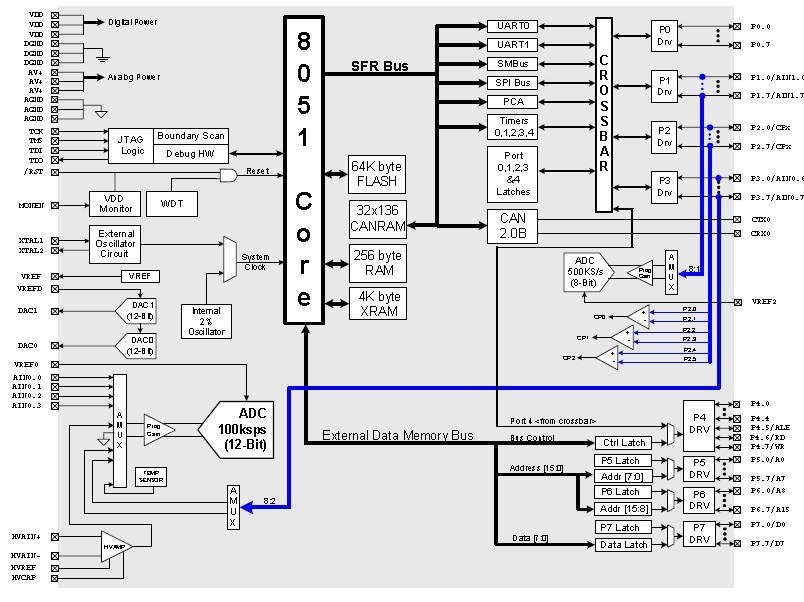

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |

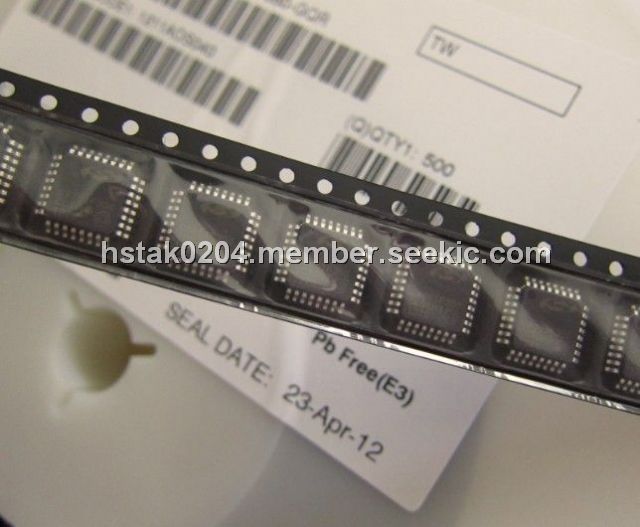

 C8051F040-GQR |
Silicon Labs |
8-bit Microcontrollers (MCU) 64KB 12ADC CAN 100P Tape and Reel |
Data Sheet |
|
|
||||||||||||
