Product Summary
The C8051F206-GQR is a family of fully integrated, mixed-signal System on a Chip MCUs available with a true 12-bit multi-channel ADC, 8-bit multi-channel ADC, or without an ADC. Each model features an 8051-compatible microcontroller core with 8 kB of Flash memory. There are also UART and SPI serial interfaces implemented in hardware (not bit-banged in user software). Products in this family feature 22 or 32 general purpose I/O pins, some of which can be used for assigned digital peripheral interface. Any pins may be configured for use as analog input to the analog-to-digital converter.
Parametrics
Characteristics: (1)Operating Temperature -40℃ to 85℃; (2)Connectivity SPI, UART/USART; (3)Peripherals Brown-out Detect/Reset, POR, WDT; (4)Voltage - Supply (Vcc/Vdd) 2.7V to 3.6V; (5)Lead Free Status Lead Free ; (6)RoHS Status RoHS Compliant.
Features
Features: (1)On-chip debug circuitry facilitates full speed, non-intrusive in-system debug; (2)Provides breakpoints, single-stepping, watchpoints, stack monitor; (3)Inspect/modify memory and registers; (4)Superior performance to emulation systems using ICE-chips, target pods, and sockets; (5)Complete, low cost development kit High Speed; (6)8051 mC Core; (7)Pipelined Instruction Architecture; Executes 70% of Instructions in 1 or 2 System Clocks; (8)Up to 25MIPS Throughput with 25MHz Clock; (9)Expanded Interrupt Handler.

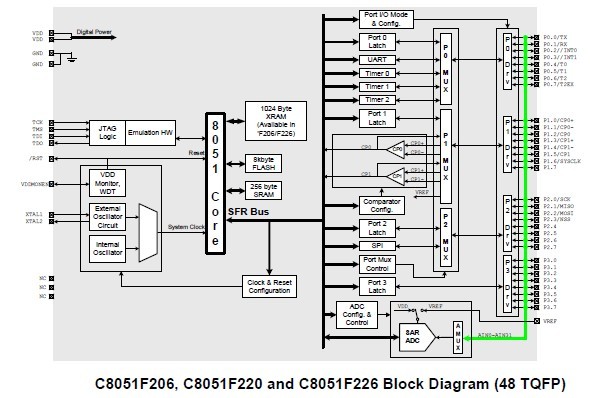

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |

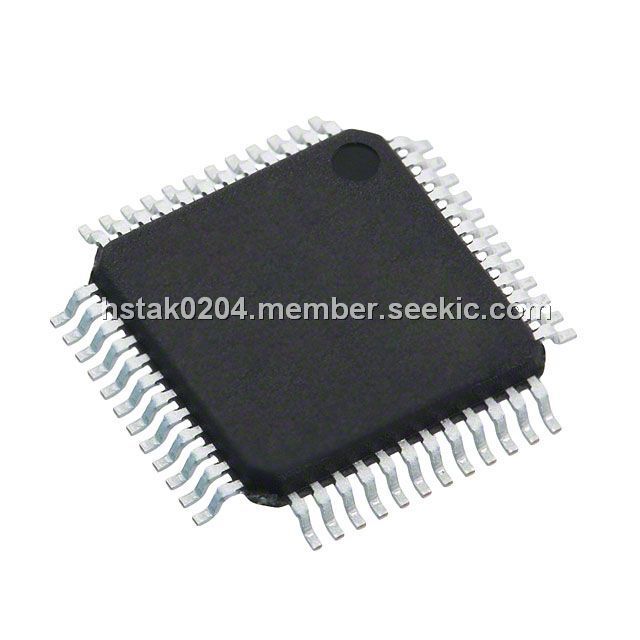

![]() C8051F206-GQR |
![]() Silicon Labs |
![]() 8-bit Microcontrollers (MCU) 8KB 12ADC 1KRam 48P Tape and Reel |
![]() Data Sheet |
![]()
|
|
||||||||||||
