MC14511BDG

BCD-to-seven segment latch, SOIC-16, -0.5 to +18.0 V, 500 mW, 50mA, Pb-Free, Triple Diode Protection

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.19~0.55 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.19~0.55

PartNumber:: MC14511BDG

Brand:: ON SEMICONDUCTOR - ONS | Pack: SOIC | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Amber's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-24

From Other Seller

Part Number:MC14511BDG
US $0.19 - 0.55
AT25256AW-10SU-2.7

US $0.65 - 1.50 / Piece
(0) Remove
HT46R47

US $0.35 - 1.50 / Piece
(0) Remove
Quantity:

piece

Product Summary

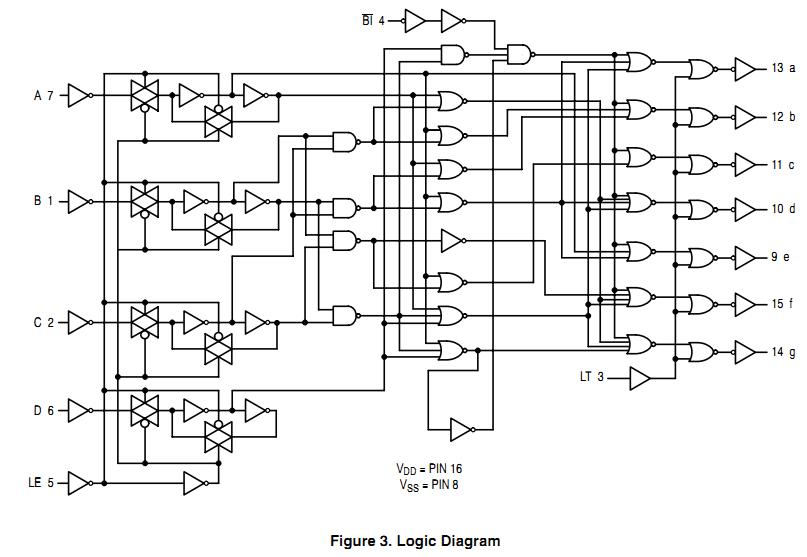

The MC14511BDG is a BCD-to-seven segment latch/decoder/driver constructed with complementary MOS (CMOS) enhancement mode devices and NPN bipolar output drivers in a single monolithic structure. The MC14511BDG provides the functions of a 4-bit storage latch, an 8421 BCD-to-seven segment decoder, and an output drive capability. Lamp test (LT), blanking (BI), and latch enable (LE) inputs are used to test the display, to turn-off or pulse modulate the brightness of the display, and to store a BCD code, respectively. The MC14511BDG can be used with seven-segment light-emitting diodes (LED), incandescent, fluorescent, gas discharge, or liquid crystal readouts either directly or indirectly.

Parametrics

MC14511BDG absolute maximum ratings: (1)VDD, DC Supply Voltage Range: -0.5 to +18.0 V; (2)Vin, Input Voltage Range, All Inputs: -0.5 to VDD + 0.5 V; (3)I, DC Current Drain per Input Pin: 10 mA; (4)PD, Power Dissipation: 500 mW; (5)TA, Operating Temperature Range: -55 to +125℃; (6)Tstg, Storage Temperature Range: -65 to +150℃; (7)IOHmax, Maximum Output Drive Current (Source) per Output: 25 mA; (8)POHmax, Maximum Continuous Output Power (Source) per Output: 50mA.

Features

MC14511BDG features: (1)Low Logic Circuit Power Dissipation; (2)High-Current Sourcing Outputs (Up to 25 mA); (3)Latch Storage of Code; (4)Blanking Input; (5)Lamp Test Provision; (6)Readout Blanking on all Illegal Input Combinations; (7)Lamp Intensity Modulation Capability; (8)Time Share (Multiplexing) Facility; (9)Supply Voltage Range = 3.0 V to 18 V; (10)Capable of Driving Two Low-power TTL Loads, One Low-power Schottky TTL Load, or Two HTL Loads Over the Rated Temperature Range; (11)Chip Complexity: 216 FETs or 54 Equivalent Gates; (12)Triple Diode Protection on all Inputs; (13)Pb-Free Packages are Available.
