Product Summary

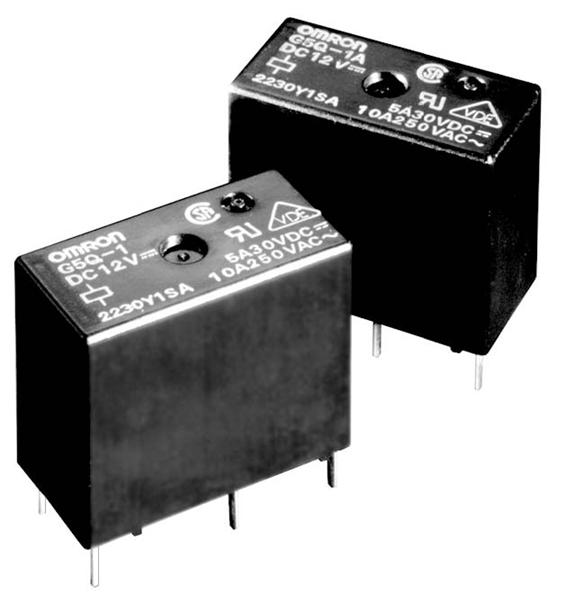

The G5Q-14-12V/24V is a compact, high isolation relay.

Parametrics

Contact ratings: (1)Contact material: Ag alloy; (2)Rated carry current: 10 A (NO)/3 A (NC); (3)Max. switching voltage: 277 VAC, 30 VDC; (4)Max. switching current: AC: 10 A (NO)/3 A (NC); DC: 5 A (NO)/3 A (NC); (5)Max. switching capacity: 1250 VA, 150 W (NO); 375 VA, 90 W (NC); (6)Min. permissible load: 10 mA at 5 VDC (P level: λ60 = 0.1 × 10-6/operation)

Features

Features: (1)Compact single pole relay with high isolation between coil and contacts; (2)Ensures a withstand impulse voltage of 8,000V between the coil and contacts; (3)Low coil power consumption; (4)UL class F coil insulation; (5)UL recognized / CSA certified. EN approved; (6)Ideal for appliance and HVAC controls; (7)RoHS Compliant.

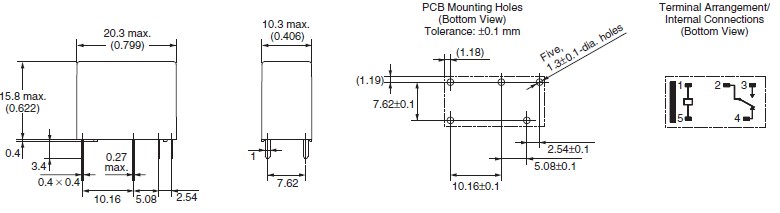

Diagrams

G5Q-1 DC12
G5Q-1 DC12


RELAY GEN PURPOSE SPDT 10A 12V

Data Sheet

0-1: $1.85
1-25: $1.67
25-50: $1.48
50-100: $1.33
100-250: $1.26
250-500: $1.11
500-1000: $1.00
