Product Summary

The C8051F330-GMR is a Mixed Signal ISP Flash MCU fully integrated mixed-signal System-on-a-Chip MCUs. With on-chip Power-On Reset, VDD monitor, Watchdog Timer, and clock oscillator, the C8051F330-GMR is truly stand-alone System-on-a-Chip solutions. The Flash memory can be reprogrammed even in-circuit, providing non-volatile data storage, and also allowing field upgrades of the 8051 firmware. User software has complete control of all peripherals, and may individually shut down any or all peripherals for power savings.

Parametrics

C8051F330-GMR absolute maximum ratings: (1)Ambient temperature under bias: -55 to 125℃; (2)Storage Temperature: -65 to 150℃; (3)Voltage on any Port I/O Pin or RST with respect to GND: -0.3 to 5.8 V; (4)Voltage on VDD with respect to GND: -0.3 to 4.2 V; (5)Maximum Total current through VDD or GND: 500 mA; (6)Maximum output current sunk by RST or any Port pin: 100 mA.

Features

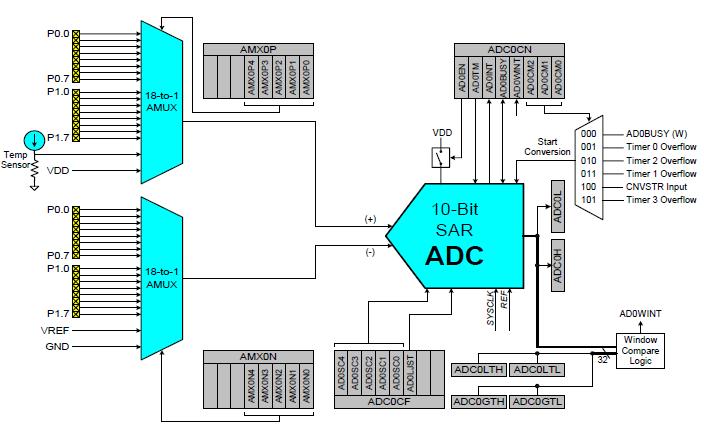

C8051F330-GMR features: (1)High-speed pipelined 8051-compatible microcontroller core (up to 25 MIPS); (2)In-system, full-speed, non-intrusive debug interface (on-chip); (3)True 10-bit 200 ksps 16-channel single-ended/differential ADC with analog multiplexer; (4)10-bit Current Output DAC; (5)Precision programmable 25 MHz internal oscillator; (6)Up to 8 kB of on-chip Flash memory?12 bytes are reserved; (7)768 bytes of on-chip RAM; (8)SMBus/I2C, Enhanced UART, and Enhanced SPI serial interfaces implemented in hardware; (9)Four general-purpose 16-bit timers; (10)Programmable Counter/Timer Array (PCA) with three capture/compare modules and Watchdog Timer function; (11)On-chip Power-On Reset, VDD Monitor, and Temperature Sensor; (12)On-chip Voltage Comparator; (13)17 Port I/O (5 V tolerant).
