Product Summary

The JW1FSN-12V/24V is a compact PC board power relay from OMRON.

Parametrics

JW1FSN-12V/24V absolute maximum ratings: (1)Nominal switching capacity: 5A 250V AC, 5A 30V DC, 10A 250V AC, 10A 30V DC; (2)Max. switching: power 1,250VA, 150W 2,500VA, 300W; (3)Max. switching voltage: 250V AC, 30V DC; (4)Max. switching: current 5A, 10A.

Features

JW1FSN-12V/24V features: (1)Miniature package with universal terminal footprint; (2)High dielectric withstanding for transient protection: 10,000 V surge in ms between coil and contact; (3)Sealed construction; (4)Class B coil insulation types available; (5)TV rated (TV-5) types available (only for 1 Form A type); (6)VDE, TuV, SEMKO, SEV, FIMKO, TV-5 also approved.

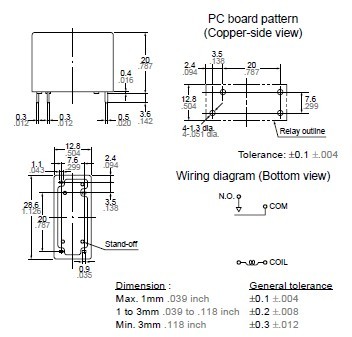

Diagrams
