Product Summary

The M-89 is an ultra miniature 25.4 * 25.4 * 3 mm GPS engine board designed by low power consumption MTK GPS solution. It provides superior sensitivity up to -159dBm and fast Time-To-First-Fix in navigation application. The stable performance of M-89 is your best choice to be embedded in your portable device design, like PDA, PND, mobile phone, Digital Camera for GPS service.

Parametrics

Characteristics: (1)GPS technology: MTK GPS chipset; (2)Frequency: L1,1575.42MHZ; (3)C/A Code: 1.023MHZ chip rate; (4)Channels: 32 channels all in view searching; (5)Sensitivity: Batter than -159dBm; (6)Velocity: Without aid:0.1 M/sec; (7)Time: 0.1 microsecond. Sync GPS time; (8)Acceleration Limit: ＜4G; (9)Altitude Limit: ＜18000 meters; (10)Velocity Limit: ＜515 M/sec; (11)Jerk Limit: 20 M/sec3.

Features

Features: (1)small form factor: 25.4 * 25.4 * 3 mm ; (2)RoHS/WEEE compliant; (3)High sensitivity -159dBm ; (4)Searching up to 32 Channel of satellites; (5)Fast Position Fix; (6)Low power consumption; (7)RTCM- in ready; (8)Built-in WAAS/EGNOS/MSAS Demodulator; (9)Support NMEA0183 V 3.01 data protocol; (10)Real time navigation for location based services; (11)For Car Navigation, Marine Navigation, Fleet Management, AVL and Location-Based Services, Auto Pilot; (12)Personal Navigation or touring devices, Tracking devices/systems and Mapping devices application.

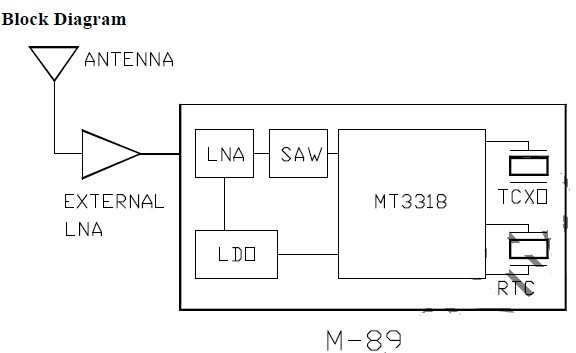

Diagrams
