Product Summary

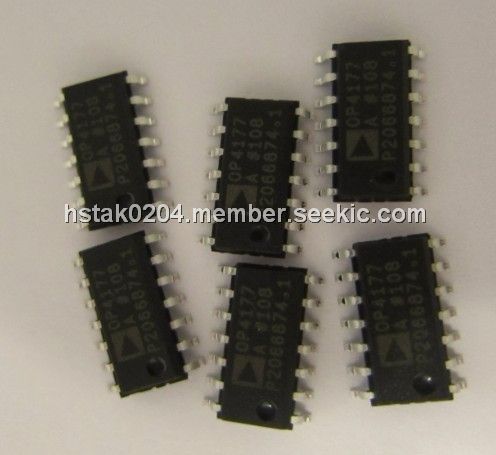

The OP4177ARZ is a very high precision, single, dual, and quad amplifier featuring extremely low offset voltage and drift, low input bias current, low noise, and low power consump-tion. Outputs are stable with capacitive loads of over 1000 pF with no external compensation. Supply current is less than 500 μA per amplifier at 30 V. Internal 500 Ω series resistors protect the inputs, allowing input signal levels several volts beyond either supply without phase reversal. The OP4177ARZ (quad) is available in TSSOP and 14-lead narrow SOIC packages. Moreover, specified performance in the MSOP and the TSSOP is identical to performance in the SOIC package. MSOP and TSSOP are available in tape and reel only. The OP4177ARZ offers the widest specified temperature range of any high precision amplifier in surface-mount packaging.
Parametrics
OP4177ARZ absolute maximum ratings: (1)Supply Voltage: 36 V; (2)Input Voltage: VS- to VS+; (3)Differential Input Voltage: ±Supply Voltage; (4)Storage Temperature Range, R, RM, and RU Packages: -65℃ to +150℃; (5)Operating Temperature Range, OP1177/OP2177/OP4177: -40℃ to +125℃; (6)Junction Temperature Range, R, RM, and RU Packages: -65℃ to +150℃; (7)Lead Temperature, Soldering (10 sec): 300℃.
Features
OP4177ARZ features: (1)Low offset voltage: 60 μV maximum; (2)Very low offset voltage drift: 0.7 μV/℃ maximum; (3)Low input bias current: 2 nA maximum; (4)Low noise: 8 nV/√Hz typical; (5)CMRR, PSRR, and AVO > 120 dB minimum; (6)Low supply current: 400 μA per amplifier; (7)Dual supply operation: ±2.5 V to ±15 V; (8)Unity-gain stable; (9)No phase reversal; (10)Inputs internally protected beyond supply voltage.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OP4177ARZ |
|
IC OPAMP GP 1.3MHZ QUAD 14SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP4177ARZ-REEL |
|
IC OPAMP GP 1.3MHZ QUAD 14SOIC |
Data Sheet |
|
|
||||||||||||||||||
|
OP4177ARZ-REEL7 |
|
IC OPAMP GP 1.3MHZ QUAD 14SOIC |
Data Sheet |
|
|
||||||||||||||||||
